140 EVOLUTION
TELESCOPIC

The “Telescopic” 140 doors are perfect for optimizing space in narrow passages, allowing a wide opening even in spaces with limited availability. Their compact structure makes them ideal for meeting specific architectural needs, offering an elegant and practical entrance.

TECHNICAL DATA

Interior / Exterior

140 X 227 mm

2 Leaves: Clear Opening Width 900 – 3000
            Clear Opening Height 1900 – 3000

4 Leaves: Clear Opening Width 800 – 3000
            Clear Opening Height 1920 – 2970

2 Leaves: Max 150 Kg x 2
4 Leaves: Max 80 Kg x 4

0,3 – 0,8 m/s (adjustable)

0 : 20 sec (adjustable)

230 Vac 50/60 Hz
Max 300W/230V power consumption
< 7,2 W power consumption in sleeping mode

-15° C + 50° C

Intensive use 100%

Tested 2,000,000 cycles (4,000 cycles/day)

Glass, P20 Profiles, Standard Profiles 50 mm, 45 mm, 40mm

To the wall, between the walls, under the ceiling, with top installation screen, in the wall

Anodized
Aluminium
Natural RAL color

Different color options

  1. Sensors
  2. Buttons
  3. Access Control
  4. RFID Technology
  5. External Key
  6. Time Slot Management
  1. Closed
  2. Exit Only
  3. Bidirectional
  4. Entry Only
  5. Open
  6. Manual
  7. Reduced Winter Opening Parameter Adjustment
  8. Password Management
  9. Language Selection
  10. Diagnostics

Optional

Optional

Included, activable with sensors with direction reading

Included

  • EN 16005
  • EN 13849-1
  • EN 13849 -2
  • EN 61000-6-2
  • EN 61000-6-3
  • EN 60335-2-103
  • DIN 18650-1
  • DIN 18650-2

DIMENSIONS

Vp = 900 – 3000 mm
H = 1900 – 3000 mm
Vpu = 900 – 3000 mm
Hpu = 1900 – 3000 mm
LTT = 1440 – 7000 mm

Vp = 1600 – 3000 mm
H = 1900 – 3000 mm
Vpu = 1600 – 3000 mm
Hpu = 1900 – 3000 mm
LTT = 2550 – 7000 m

Vp = Wall Frame Width
H = Wall Frame Height
Vpu = Clear Opening With
Hpu = Clear Opening Height
LTT = Automation Length
Sd = Safety Distance

Vp = 1400 – 6950 mm
H = 1922 – 3000 mm
Vpu = 870 – 4530 mm
Hpu = 1900 – 2970 mm
LTT = 1470 – 7000 m
Sd = 50 (min)

Vp = 2500 – 6950 mm
H = 1922 – 3000 mm
Vpu = 1550 – 4514 mm
Hpu = 1900 – 2978 mm
LTT = 2534 – 7000 m
Sd = 50 (min)

DRAWINGS

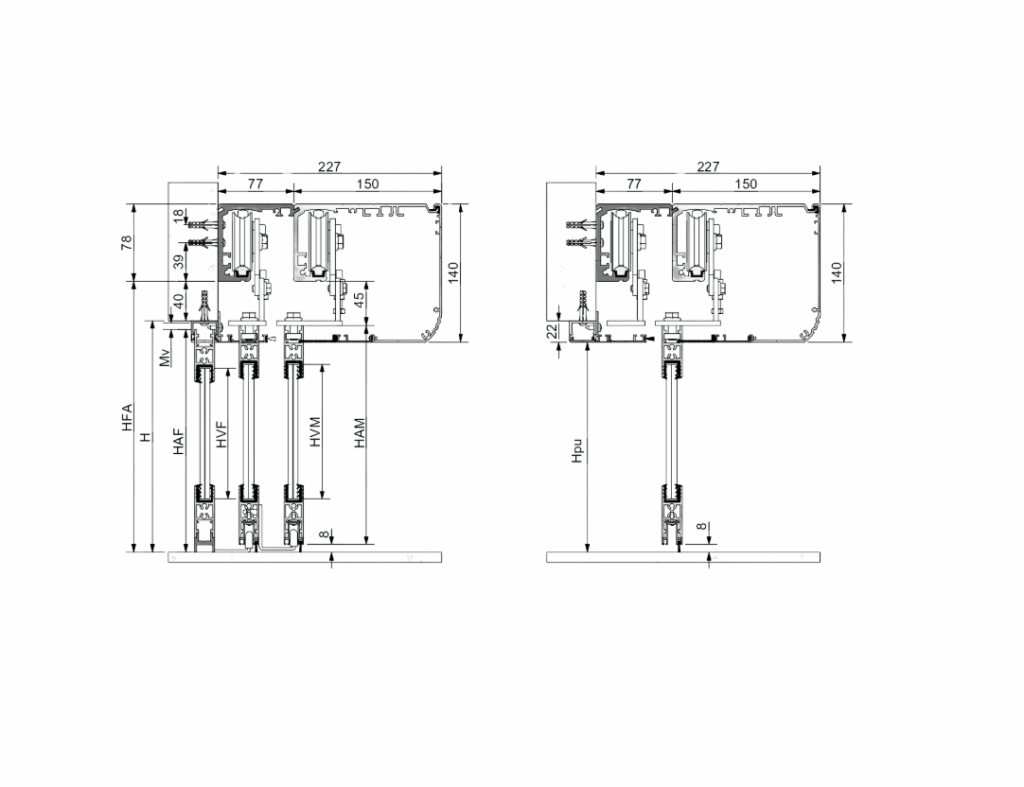

VERTICAL SECTION

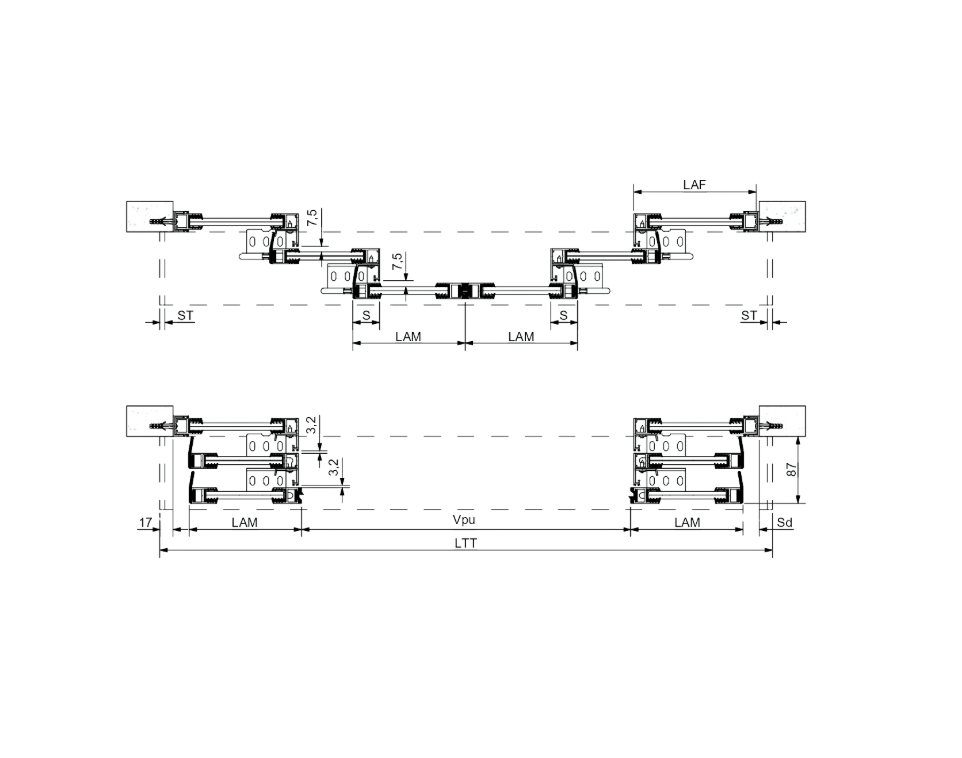

HORIZONTAL SECTION
