140 EVOLUTION
CORNER
The automatic door at “Corner” is the ideal solution for those looking for an extraordinary visual impact, combining innovation and practicality. Its distinctive design enhances the entrance, creating a unique and sophisticated atmosphere, perfect for modern environments.
TECHNICAL DATA
Interior / Exterior
140 X 227 mm
2 Leaves: Clear Opening Width 800 – 3000
Clear Opening Height 1900 – 3000
4 Leaves: Clear Opening Width 800 – 3000
Clear Opening Height 1920 – 2970
2 Leaves: Max 120 Kg + 120 Kg
0,3 – 0,8 m/s (adjustable)
0 : 20 sec (adjustable)
230 Vac 50/60 Hz
Max 300W/230V power consumption
< 7,2 W power consumption in sleeping mode
-15° C + 50° C
Intensive use 100%
Tested 2,000,000 cycles (4,000 cycles/day)
P20 Profiles 20 mm (Laminated Glass 44,2 or 55,1)
To the wall, between the walls, under the ceiling, with top installation screen, in the wall
Anodized
Aluminium
Natural RAL color
Different color options
- Sensors
- Buttons
- Access Control
- RFID Technology
- External Key
- Time Slot Management
- Closed
- Exit Only
- Bidirectional
- Entry Only
- Open
- Manual
- Reduced Winter Opening Parameter Adjustment
- Password Management
- Language Selection
- Diagnostics
Optional
Optional
Included, activable with sensors with direction reading
Included
- EN 16005
- EN 13849-1
- EN 13849 -2
- EN 61000-6-2
- EN 61000-6-3
- EN 60335-2-103
- DIN 18650-1
- DIN 18650-2
DIMENSIONS
Vp = 1600 – 6500 mm
H = 1900 – 3000 mm
Vpu = 800 – 3000 mm
Hpu = 1900 – 3000 mm
LTT = 1680 – 7000 mm
Sd = 50 (min)
Vp = 1600 – 6500 mm
H = 1900 – 3000 mm
Vpu = 800 – 3000 mm
Hpu = 1900 – 3000 mm
LTT = 1680 – 7000 mm
Sd = 50 (min)
AGENDA
Vp = Wall Frame Width
H = Wall Frame Height
Vpu = Clear Opening With
Hpu = Clear Opening Height
LTT = Automation Length
Sd = Safety Distance
DRAWINGS

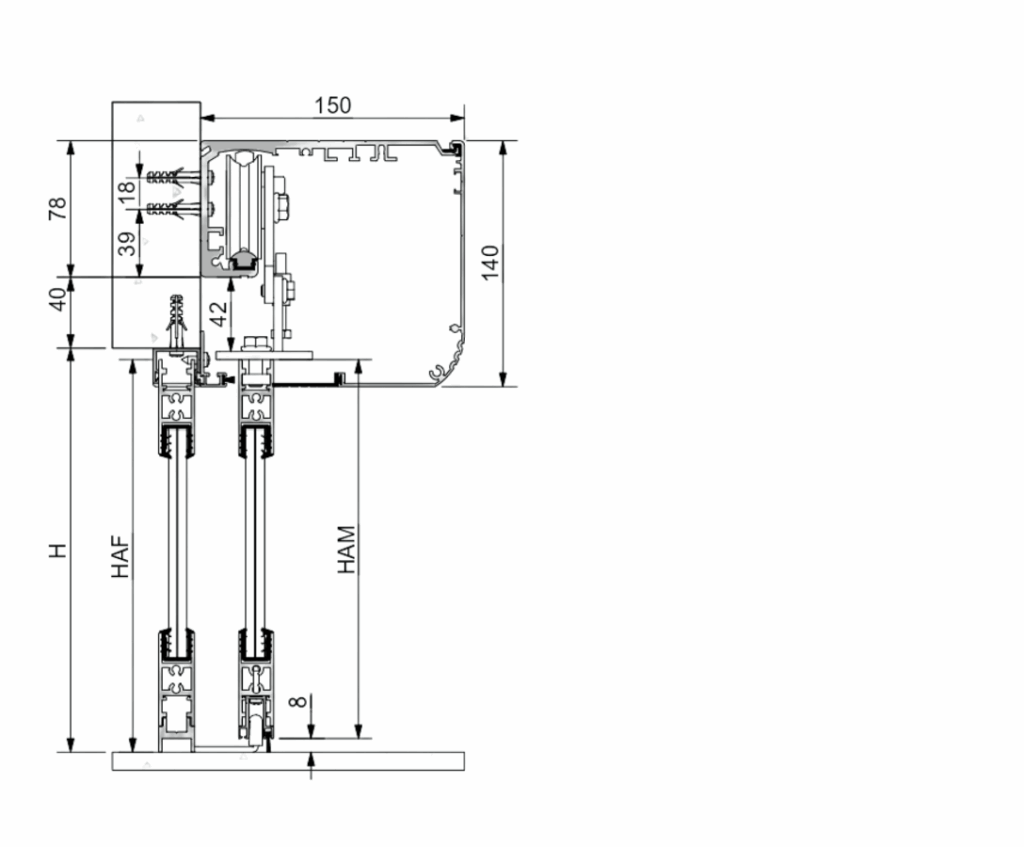

VERTICAL SECTION
HORIZONTAL SECTION
